| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Topland |
| Certification: | API |
| Model Number: | SW12-D1 |
| Minimum Order Quantity: | 1 |
| Price: | NEGOTIABLE |
| Packaging Details: | STANDARD EXPORT PACKAGE |
| Delivery Time: | ABOUT 40 DAYS |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 5 SETS/MONTH |
| Material: | Alloy;Steel | Application: | Drilling |
|---|---|---|---|
| Customization: | Acceptable | Condition: | New |
| Durability: | High | Size: | At Request |
| Highlight: | Hydraulic Well Drilling Iron Roughneck,Iron Roughnecks For Drilling Purposes |
||

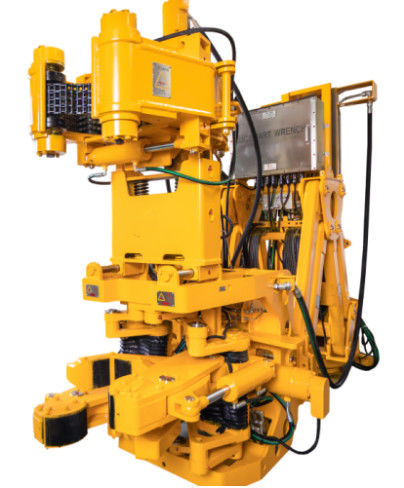

SW12-D1 IRON ROUGHNECK Ultra-Deep Well Smart Wrench Remote Control and Wireless Control (Standard)
The equipment applies a unique dual torque wrench design with higher make-up torque which is suitable for dual elevator operation in ultra-deep wells. AI machine vision and low-temperature upgrade packages are optional.
| Techincal Specifications | |
| Model | SW12-D1 |
| Hydraulic Requirement | Rated Pressure: 17.5MPa (2,500psi) Max Pressure: 21MPa (3,000psi) Rated Flow: 140LPM (37GPM) Min Flow: 120LPM (32GPM) |
| Pipe Range | 2-7/8 ″DP ~ 9-3/4 ″DC |
| Max. Spin Speed | 80RPM @ 5 ″DP |
| Max. Spin Torque | 5,000N·m (3,750ft-lb ) |
| Max. Make-up Torque | 140,000N·m (100,000ft-lb) |
| Max. Break-out Torque | 160,000N·m (120,000ft-lb) |
| Joint Height | 570mm ~ 1,570mm (22.4″~61.8″) |
| Horizontal Travel | 2,365mm ~ 3,840mm (93.5″~151.2″) |
| Controls | Remote Control and Wireless Control (Standard) |

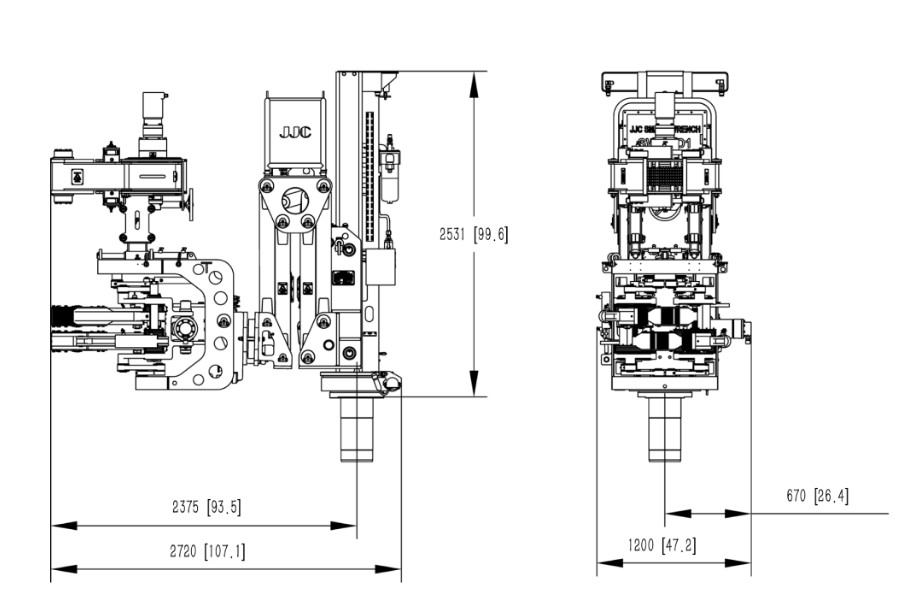

| Dimensions (WxHxL) |
1,200mm×2,531mm×2,375mm ( 47.2″×99.6″×93.5″) |
| Weight | 3,925kg (8,653lbs) |

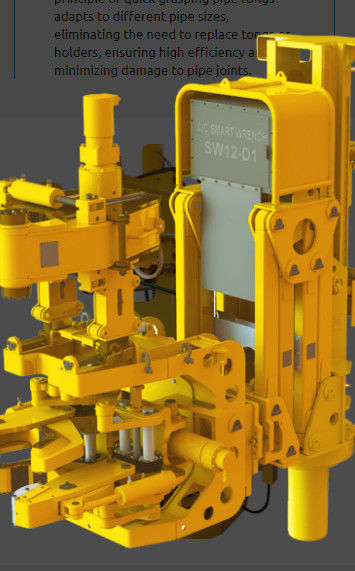

The structure is simple and reasonable applying modular structural design, more convenient for maintenance. Durable and robust, low failure rate, less maintenance, and lower maintenance cost.Patented continuous chain spinner effectively reduces damage to the pipe. Patented torque wrench applying the principle of quick grasping pipe tongs adapts to different pipe sizes, eliminating the need to replace tongs or holders, ensuring high efficiency and minimizing damage to pipe joints.
