| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Topland |
| Certification: | API |
| Model Number: | SW06-D1 |
| Minimum Order Quantity: | 1 |
| Price: | NEGOTIABLE |
| Packaging Details: | STANDARD EXPORT PACKAGE |
| Delivery Time: | ABOUT 35 DAYS |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 5 SETS/MONTH |
| Material: | Alloy;Steel | Application: | Drilling |
|---|---|---|---|
| Customization: | Acceptable | Condition: | New |
| Durability: | High | Size: | Size |
| Highlight: | Compact Iron Roughneck Equipment,Smart Wrench Iron Roughneck Equipment |
||

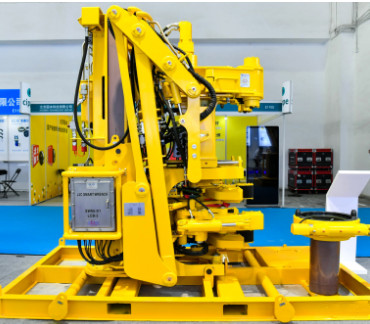

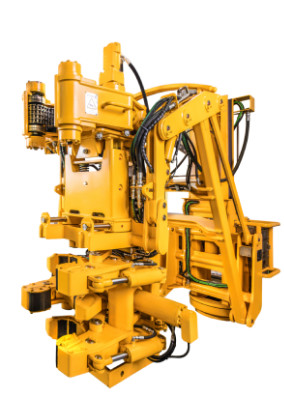

SW06-D1 IRON ROUGHNECK Compact Smart Wrench Remote Control and Wireless Control (Standard)
The equipment applies unique designed extension arm, and optimized spinning wrench and torque wrench. It is more compact, smaller and lighter which is suitable for rigs with limited drill floor, such as trailer mounted rigs, and truck mounted rigs. AI machine vision and low-temperature upgrade packages are optional.Compared with equivalent products, the equipment has the smallest footprint and lightest weight. It can be installed in the front of the driller across the wellhead so that the driller can see the jaw and tool joint directly. It has the lowest hydraulic pressure request and higher safety level.
| Techincal Specifications | |
| Model | SW06-D1 |
| Hydraulic Requirement | Rated Pressure: 17.5MPa (2,500psi) Max Pressure: 21MPa (3,000psi) Rated Flow: 140LPM (37GPM) Min Flow: 120LPM (32GPM) |
| Pipe Range | 3-1/2 ″DP ~ 8 ″DC |
| Max. Spin Speed | 80RPM @ 5 ″DP |
| Max. Spin Torque | 5,000N·m (3,750ft-lb ) |
| Max. Make-up Torque | 80,000N·m (60,000ft-lb) |
| Max. Break-out Torque | 110,000N·m (80,000ft-lb) |
| Joint Height | 650mm ~ 1,650mm (25.6″~65.0″) |
| Horizontal Travel | 1,450mm ~ 2,590mm (57.0″~102.0″) |
| Controls | Remote Control and Wireless Control (Standard) |

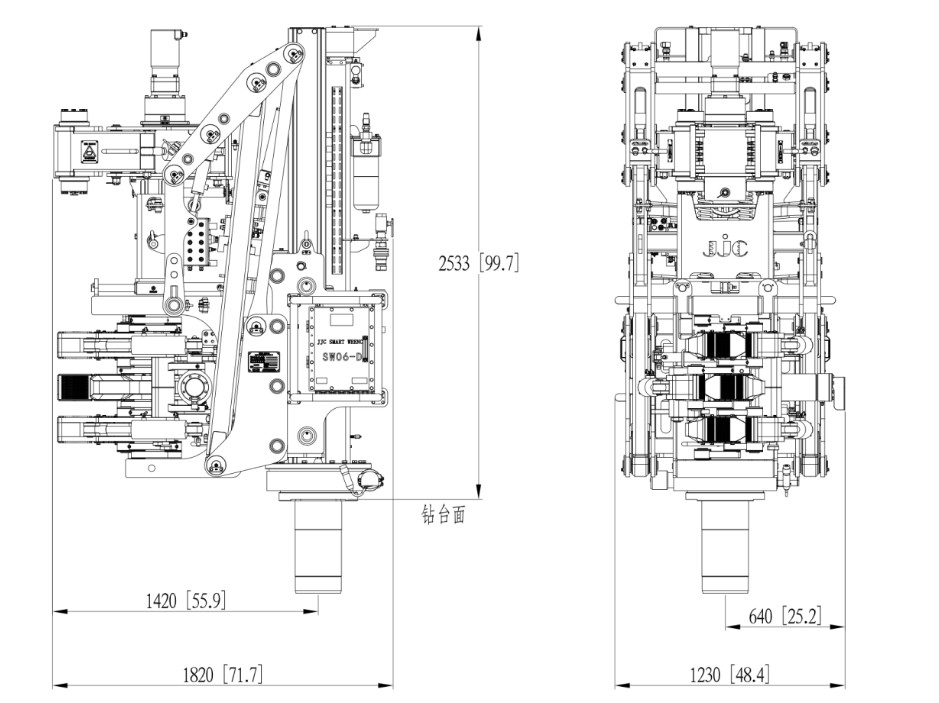

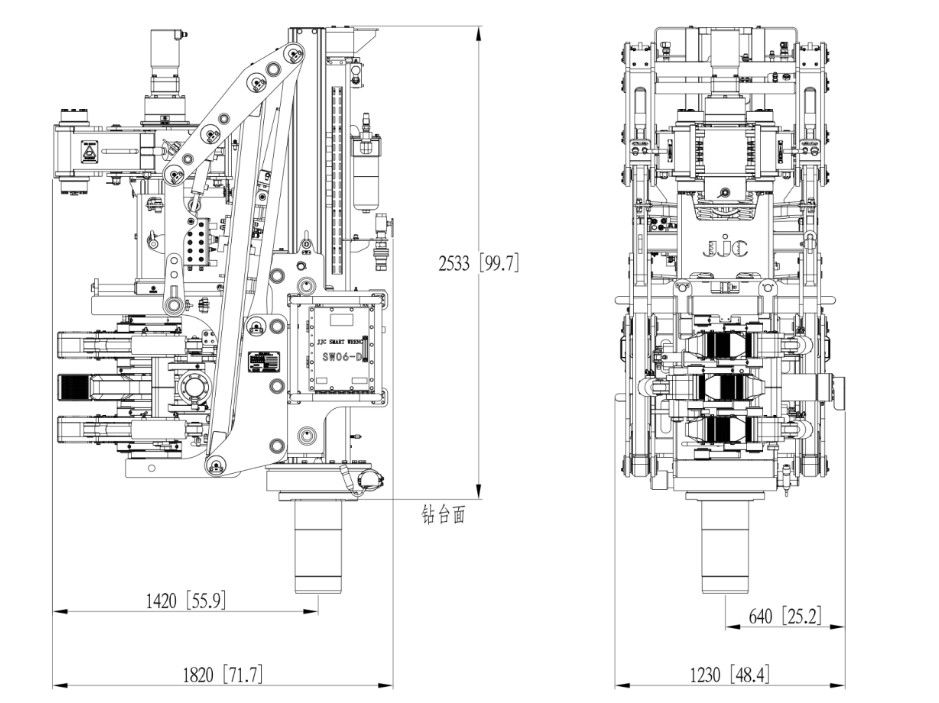

| Dimensions (WxHxL) |
1,230mm×2,533mm×1,420mm ( 48.4″×99.7″×55.9″) |
| Weight | 3,470kg (7,650lbs) |
At Topland, we specialize in the manufacturing and supply of onshore oilfield drilling equipment and rig components. Service, value, and quality are the cornerstones of our mission as we strive to contribute to a sustainable future for the oil and gas industry. Our commitment goes beyond delivering products that meet—and often exceed—technical specifications, international standards, quality requirements, and delivery timelines. We prioritize a seamless, hassle-free experience for our clients, ensuring that every interaction reflects our dedication to excellence and customer satisfaction.
