| Place of Origin: | CHINA |
|---|---|
| Brand Name: | JJC |
| Certification: | API |
| Model Number: | SW10-E1 |
| Minimum Order Quantity: | 1 |
| Price: | NEGOTIABLE |
| Packaging Details: | STANDARD EXPORT PACKAGE |
| Delivery Time: | ABOUT 40 DAYS |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 5 SETS/MONTH |
| Material: | Alloy;Steel | Application: | Drilling |
|---|---|---|---|
| Customization: | Acceptable | Condition: | New |
| Highlight: | Iron Roughneck Track Mounted,Wireless Control Iron Roughnecks,Remote Control Iron Roughnecks |
||

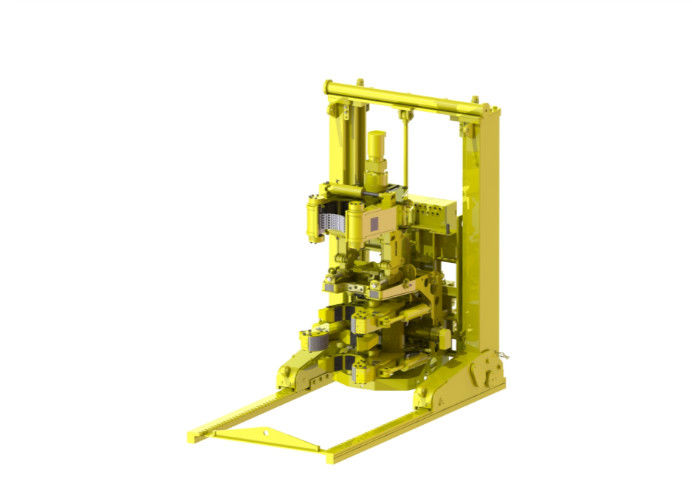

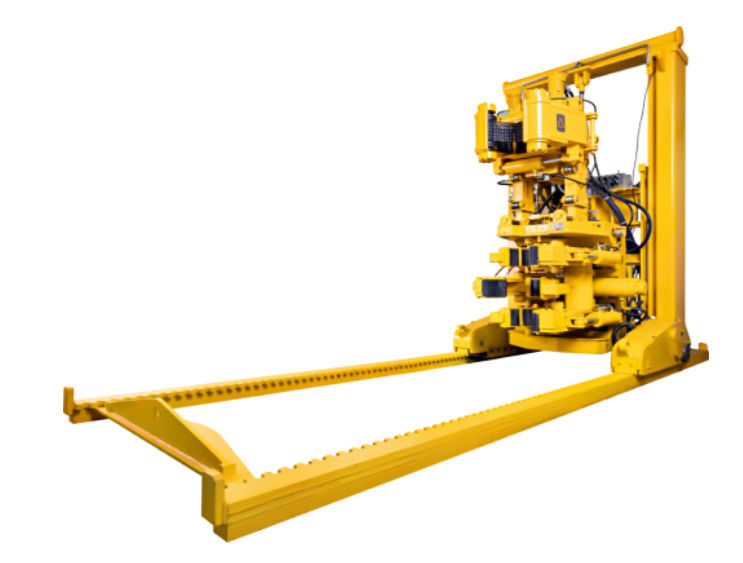

SW10-E1 IRON ROUGHNECK Track Mounted Smart Wrench Remote Control and Wireless Control (Standard)
The equipment runs on a pair of rails and provides better structural stability and positioning accuracy. It is especially suitable for offshore platforms. AI machine vision and low-temperature upgrade packages are optional.Patented continuous chain spinner effectively reduces damage to the pipe. Patented torque wrench applying the principle of quick grasping pipe tongs adapts to different pipe sizes, eliminating the need to replace tongs or holders, ensuring high efficiency and minimizing damage to pipe joints.
| Techincal Specifications | |
| Model | SW10-E1 |
| Hydraulic Requirement | Rated Pressure: 17.5MPa (2,500psi) Max Pressure: 21MPa (3,000psi) Rated Flow: 140LPM (37GPM) Min Flow: 120LPM (32GPM) |
| Pipe Range | 2-7/8 ″DP ~ 9-3/4 ″DC |
| Max. Spin Speed | 80RPM @ 5 ″DP |
| Max. Spin Torque | 5,000N·m (3,750ft-lb ) |
| Max. Make-up Torque | 140,000N·m (100,000ft-lb) |
| Max. Break-out Torque | 160,000N·m (120,000ft-lb) |
| Joint Height | 745mm ~ 1,615mm (29.3″~63.58″) |
| Horizontal Travel | 1,450mm ~ 2,590mm (57.0″~102.0″) |
| Controls | Remote Control and Wireless Control (Standard) |
| Horizontal Travel | Depending on rail length |
| Weight | 3,925kg (8,653lbs) |
Various optional kits for requested applications: low-temp kit, clamp head incline kit, one-button operation mode control kit. Local, remote, driller and integrated control options to meet the needs of new-build automatic rigs and existing rigs automatic reform.
