| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Topland |
| Certification: | API |
| Model Number: | SW10-D1 |
| Minimum Order Quantity: | 1 |
| Price: | NEGOTIABLE |
| Packaging Details: | STANDARD EXPORT PACKAGE |
| Delivery Time: | ABOUT 35 DAYS |
| Payment Terms: | Western Union,T/T |
| Supply Ability: | 5 SETS/MONTH |
| Material: | Alloy;Steel | Application: | Drilling |
|---|---|---|---|
| Customization: | Acceptable | Condition: | New |
| Highlight: | High Strength Iron Roughneck,Iron Roughneck Pipe Handling Tool,Iron Roughneck Smart Swrench |
||

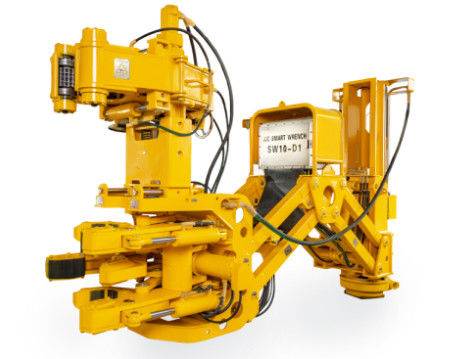

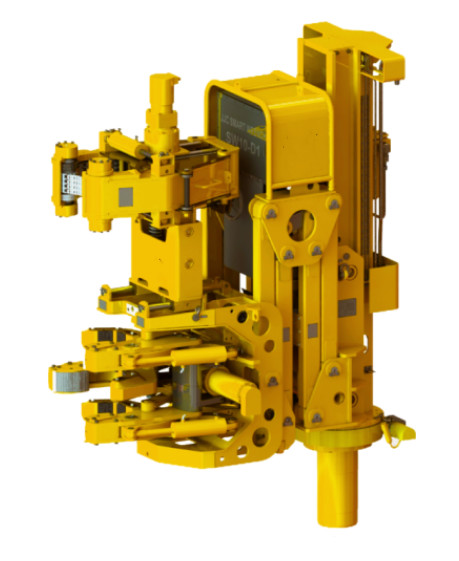

SW10-D1 IRON ROUGHNECK Standard Smart Wrench Remote Control And Wireless Control (Standard)
The smart wrench is a drill floor robot used for making up and breaking out the tool joints of oil & gas drilling tubulars. The equipment applies patented chain-based spinning wrench and a patented smart torque wrench, which can carry out the making up and breaking out operation quickly and safely. AI machine vision and low-temperature upgrade packages are optional.
| Techincal Specifications | |
| Model | SW10-D1 |
| Hydraulic Requirement | Rated Pressure: 17.5MPa (2,500psi) Max Pressure: 21MPa (3,000psi) Rated Flow: 140LPM (37GPM) Min Flow: 120LPM (32GPM) |
| Pipe Range | 2-7/8 ″DP ~ 9-3/4 ″DC |
| Max. Spin Speed | 80RPM @ 5 ″DP |
| Max. Spin Torque | 5,000N·m (3,750ft-lb ) |
| Max. Make-up Torque | 140,000N·m (100,000ft-lb) |
| Max. Break-out Torque | 160,000N·m (120,000ft-lb) |
| Joint Height | 650mm ~ 1,650mm (25.6″~65.0″) |
| Horizontal Travel | 1,850mm ~ 3,300mm (72.8″~129.9″) |
| Controls | Remote Control and Wireless Control (Standard) |

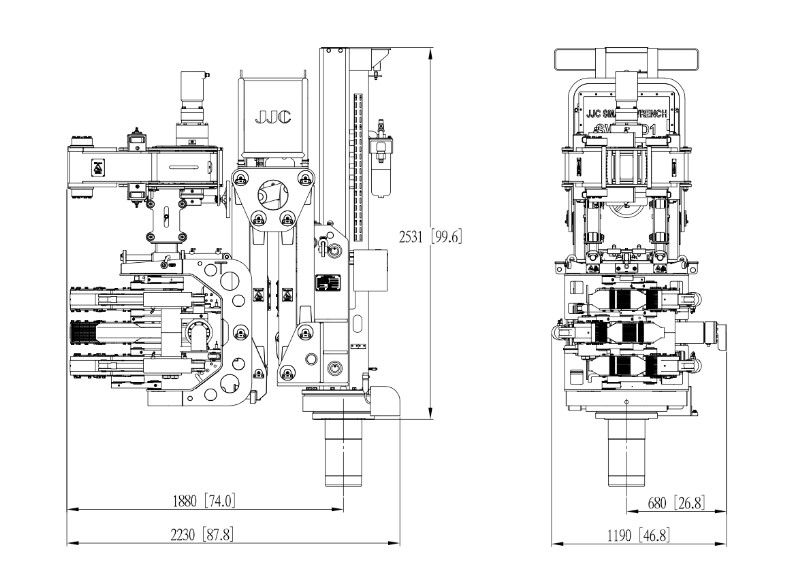

| Dimensions (WxHxL) |
1,190mm×2,531mm×1,880mm ( 46.7″×99.6″×74.0″) |
| Weight | 3,700kg (8,157lbs) |
