| Place of Origin: | China |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | ISO |
| Model Number: | TDS-11SA |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 500 Per/Month |
| Model NO: | Varco TDS-11SA 30158690 | Operation Pressure: | Atmospheric Pressure |
|---|---|---|---|
| Material: | Alloy | Surface Treatment: | Spray-Paint |
| HS Code: | 8431431000 | ||
| Highlight: | Varco TDS-11SA 30158690,Varco Top Drive Spare Parts Liner,Varco Drilling Rig Spare Parts |
||
Description of TDS
TDS Top Drive Spare Parts are essential components used in the maintenance and repair of top drives, which are important drilling equipment used in the oil and gas industry. TDS stands for "Top Drive System," and these spare parts are designed to fit and enhance the performance of TDS top drives.
The TDS Top Drive Spare Parts are manufactured with high-quality materials, ensuring durability and reliability under extreme drilling conditions. These spare parts include a range of components such as bearings, seals, gears, motors, and electronic control systems, among others. They are designed to be compatible and interchangeable with the original equipment manufacturer (OEM) parts, making them a cost-effective alternative for replacement.
Related Parts For TDS
| Description | Part No. |
| RING,HEAD,CYLINDER | 11085 |
| SEAL,PISTON | 72219 |
| SEAL ROD | 72220 |
| WIPER, ROD | 72221 |

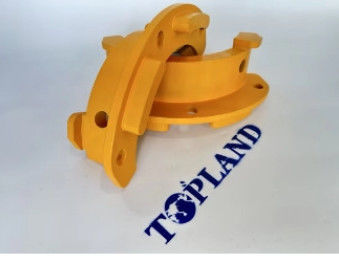

| LINER, STABILIZER | 30158690 |
| BUSHING,SLEEVE,1.00x0.50,FIBERGLIDE | 118844-16-08 |
| BUSHING,SLEEVE,1.00x0.75,FIBERGLIDE | 118844-16-12 |
| BUSHING.SLEEVE,1.38x1.38,FIBERGLIDE | 118844-22-22 |
| CAM FOLLOWER | 71847 |
| O-RING | 51300-273-B |
| O-RING | 51300-381-B |
| RING,GLYD,11.0DIA-ROD | 30119319 |
| RING,GLYD,11.5 DIA-ROD(S48130-340A-29) | 30119143 |
| RING,GLYD,10.0 DIA-ROD | 118375 |
| RING,THRUST,.125x7.75x10.0 | 30119357 |
| PISTON RING | 30173156 |
| SEAL,LIP 8.25x9.5x.62 | 77039 |
| SEAL,WIPER,11.0DIA-ROD | 119547 |
| RING,RETAINER,EXTERNAL | 30117775-2 |
| BUSHING,SLEEVE,SPLIT,1.25X10.0DIA | 119358 |
| BUSHING,SLEEVE,1.0X1.25 | 115176 |
| BEARING,SINTERED,BRONZE,FLANGED | 112754-130 |
| SLEEVE,SHOT PIN,PH-100 | 30151951 |
| FLANGE BUSHING,SHOT PIN,PH-100 | 30151961 |
| SEAL,ROD,1.5BORE | 110056 |
| SEAL,PISTON (same as 110061) | 110061-326 |
| SHOT PIN,PH-100 | 30173958 |
| O-RING | 51300-226-B |
| RING, RETAINING - INTERNAL | 53500-225 |
| BLADDER,RESERVOIR TDS9S 5 gallon | 110191-501 |
| GASKET,COVER | 110132 |
| O-RING | 51300-038-B |
| BREATHER,RESERVOIR | 71613 |
| SEALS,ACCUM,6" W/LOW TEMP NITRILE | 30124575-2 |
| SEALS,ACCUM,2" W/LOW TEMP NITRILE | 30124576-2 |
| SEAL KIT FLR 4" ID ACCUMULATOR W/LT NITR | 87605-2 |
| LINER,STEM,UPPER | 98290 |
| SEAL,POLYPAK,3.875,STD.BORE,TDS | 98291+30 |
| O-RING | 51300-277-B |
| (MT)OIL SEAL(veton),STD.BORE,TDS | 91250-1 |
| ISOLATOR,UPPER BEARING | 30173521 |
| SHIELD, BEARING,SMALL BORE, TDS 4S | 30154362 |
| (MT)TDS9S SHIM,BRG RETAIN.002 | 109586-1 |
| (MT)TDS9S SHIM,BRG RETAIN.003 | 109586-2 |
| (MT)TDS9S SHIM,BRG RETAIN.005 | 109586-3 |
| (MT)TDS9S SHIM,BRG RETAIN.010 | 109586-4 |
| (MT)TDS9S SHIM,BRG RETAIN.031 | 109586-5 |
| (MT)BEARING,ROLLER,SPHERICAL,80X170 | 117987 |
| (MT)BEARING,ROLLER,CYLINDRICAL,75X160MM | 109522 |
| (MT)BEARING,ROLLER,TAPER,200X310MM | 109519 |
| (MT)BEARING,THRUST,21.5OD | 30120556 |
| (MT)BEARING,ROLLER,CYLINDRICAL,200X360MM | 109521 |
| GEAR,BULL,HELICAL | 30158574 |
| GEAR,COMPOUND,HELICAL | 30158573 |
| SLEEVE, MAINSHAFT, TDS11 | 110040-1 |
| (MT)SLEEVE,FLANGED,7.87ID,300SS | 109591 |
| (MT)SLEEVE,STEM,STD.BORE,TDS | 91829-1 |
| O-RING | 51300-387-F |
| (MT)O-RING,.275x50.5 | 110008 |
| O-RING | 51300-277-B |
| O-RING | 51300-385-F |
| (MT)NOZZLE,SPRAY,.86GPM | 88990-9 |
| (MT)NOZZLE,SPRAY,1.3GPM | 88990-10 |
| (MT)TUBE,BEARING,LUBE,A36 | 109566 |
| (MT)PUMP,LUBE,GEARBOX,ASSY,TDS9S | 117603-1 |
| SCREW, CAP-HEX HD DRILLED | 50016-28-C5D |
| SCREW, CAP-HEX HD DRILLED | 50012-20-C5D |
| WASHER, LOCK-REGULAR (ALT P/N: 025062) | 50912-C |
| WASHER, LOCK-REGULAR | 50916-C |
| O-RING | 51300-223-F |
| O-RING | 51300-279-B |
| PIN,DOWEL | 51216-24 |
| GEAR,HELICAL,PINION | 117939 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5. How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
