| Place of Origin: | China |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API |
| Model Number: | SL450 |
| Minimum Order Quantity: | 2 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 70 per day |
| Warranty: | 1 Year | Model: | SL135, SL170, SL225, SL450 |
|---|---|---|---|
| Processing Type: | Casting | Type: | Varco Top Drive Spare Parts, Integal Swivel Assembly Wash |
| Color: | Customers' Requirement | ||
| Highlight: | Varco Top Drive Swivels Wash Pipe,Varco API Drilling Rig Spare Parts,API Standard Top Drive Parts |
||

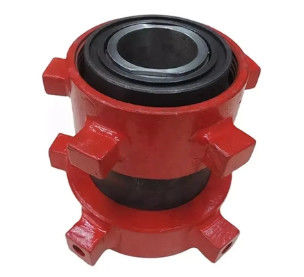

Oilfield Drilling Rig Swivels Wash Pipe Packing Assembly
Swivels Type SL are necessary hoisting tools for hanging drill pipes and jionting hoses in well repairing. There are type SL 35,SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing.
Specification:
| Model | SL135 | SL225 | SL450 | ||
| Max. static load kN(lbs) | 1350 | 2250 | 4500 | ||
| Max. Rotary speed (r/min) | 300 | 300 | 300 | ||
| Max. working pressure(Mpa) | 35 | 35 | 35 | ||
| Hook Clearance (mm) | 495 | 540 | 549 | ||
| Center Pipe Diameter (mm) | 64 | 75 | 75 | ||
| bore of stem mm(in) | 752 15/16 | 752 15/16 | 752 15/16 | ||
| Connection Screw Thread | Connect to Center Pipe API | REG 4 1/2,LH | REG 6 5/8,LH | REG 7 5/8,LH | |
| Connect to Kelly API | REG 6 5/8,LH | REG 6 5/8,LH | REG 6 5/8,LH | ||
| Model of air motor | FMS-20 | FMS-20 | FMS-20 | ||
| Rated speed r/min | 2800 | 2800 | 2800 | ||
| Power kW | 14.7 | 14.7 | 14.7 | ||
| Rated pressure MPa | 0.6 | 0.6 | 0.6 | ||
| Air consume volume m3/min | 17free air | 17free air | 17free air | ||
| Rated spinning speed r/min | 92 | 92 | 92 | ||
| Max. spinning torque N·m | 3000 | 3000 | 3000 | ||
| Overall dimension mm(in) | Length | 2505 | 2880 | 3015 | |
| Width | 758 | 1046 | 1096 | ||
| Height | 840 | 1065 | 1065 | ||
| Masskg(kg) | 1341 | 2570 | 3060 | ||
