| Place of Origin: | China |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API |
| Model Number: | SL450 |
| Minimum Order Quantity: | 2 |
| Price: | negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 70 per day |
| Model: | SL135, SL170, SL225, SL450 | Processing Type: | Casting |
|---|---|---|---|
| Type: | Varco Top Drive Spare Parts, Integal Swivel Assembly Wash | Power Source: | Hydraulic Or Electric |
| Size: | Customizable | Material: | High-strength Steel |
| Weight: | Varies Depending On Model | Function: | Rotary Drilling |
| Compatibility: | Suitable For Various Drilling Rigs | Certifications: | API And ISO Certified |
| Highlight: | Varco Oilfield Drilling Rig Spare Parts,Varco Swivels Wash Pipe Packing Assembly |
||

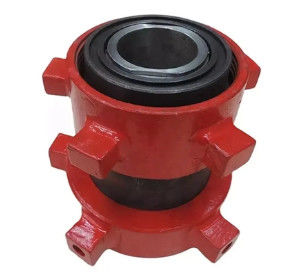

Oilfield Drilling Rig Swivels Wash Pipe Packing Assembly
Swivels Type SL are necessary hoisting tools for hanging drill pipes and jionting hoses in well repairing. There are type SL 35,SL60, SL 90 and SL135,SL225,SL450. They are designed and manufactured according to API Spec 8A/8C Specification for drilling and production hoisting equipment. The swivels are necessary hoisting tools for hanging drill pipe and jointing hose in well repairing.
When it comes to ensuring the smooth operation and maintenance of your Top Drive System, the wash pipe parts are an essential investment. Designed to provide high-quality performance, these power swivel parts are meticulously crafted to deliver reliable and efficient functionality.
With an HS code of 84314310, these top drive mechanism spare parts are engineered to fit seamlessly with Top Drive Systems, ensuring compatibility and ease of installation. Whether you are looking to enhance the performance of your existing system or replace worn-out components, these BPM hydraulic top drive components are the perfect solution.
Specification:
| Model | SL135 | SL225 | SL450 | ||
| Max. static load kN(lbs) | 1350 | 2250 | 4500 | ||
| Max. Rotary speed (r/min) | 300 | 300 | 300 | ||
| Max. working pressure(Mpa) | 35 | 35 | 35 | ||
| Hook Clearance (mm) | 495 | 540 | 549 | ||
| Center Pipe Diameter (mm) | 64 | 75 | 75 | ||
| bore of stem mm(in) | 752 15/16 | 752 15/16 | 752 15/16 | ||
| Connection Screw Thread | Connect to Center Pipe API | REG 4 1/2,LH | REG 6 5/8,LH | REG 7 5/8,LH | |
| Connect to Kelly API | REG 6 5/8,LH | REG 6 5/8,LH | REG 6 5/8,LH | ||
| Model of air motor | FMS-20 | FMS-20 | FMS-20 | ||
| Rated speed r/min | 2800 | 2800 | 2800 | ||
| Power kW | 14.7 | 14.7 | 14.7 | ||
| Rated pressure MPa | 0.6 | 0.6 | 0.6 | ||
| Air consume volume m3/min | 17free air | 17free air | 17free air | ||
| Rated spinning speed r/min | 92 | 92 | 92 | ||
| Max. spinning torque N·m | 3000 | 3000 | 3000 | ||
| Overall dimension mm(in) | Length | 2505 | 2880 | 3015 | |
| Width | 758 | 1046 | 1096 | ||
| Height | 840 | 1065 | 1065 | ||
| Masskg(kg) | 1341 | 2570 | 3060 | ||
