| Place of Origin: | China |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | ISO |
| Model Number: | TDS-11SA |
| Minimum Order Quantity: | 2 |
| Price: | Negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 3-5 Days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 30 per day |
| Model NO: | Varco TDS-11SA 30158690 | Operation Pressure: | Atmospheric Pressure |
|---|---|---|---|
| Transport Package: | Carton/Wooden Box | Surface Treatment: | Spray-Paint |
| Material: | Alloy | HS Code: | 8431431000 |
| Highlight: | drilling rig top drive spare parts,drilling rig top drive replacement parts |
||

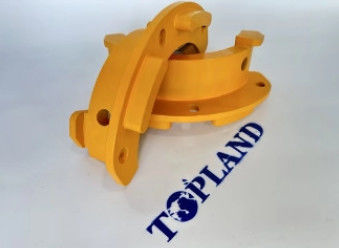

TDS Top Drive Spare Parts: Liner, Stabilizer, Varco TDS-11SA 30158690 for Drilling Rig
Description of TDS
TDS Top Drive Spare Parts are essential components used in the maintenance and repair of top drives, which are important drilling equipment used in the oil and gas industry. TDS stands for "Top Drive System," and these spare parts are designed to fit and enhance the performance of TDS top drives.
The TDS Top Drive Spare Parts are manufactured with high-quality materials, ensuring durability and reliability under extreme drilling conditions. These spare parts include a range of components such as bearings, seals, gears, motors, and electronic control systems, among others. They are designed to be compatible and interchangeable with the original equipment manufacturer (OEM) parts, making them a cost-effective alternative for replacement.
Related Parts For TDS
| Description | Part No. |
| RING,HEAD,CYLINDER | 11085 |
| SEAL,PISTON | 72219 |
| SEAL ROD | 72220 |
| WIPER, ROD | 72221 |
| LINER, STABILIZER | 30158690 |
| BUSHING,SLEEVE,1.00x0.50,FIBERGLIDE | 118844-16-08 |
| BUSHING,SLEEVE,1.00x0.75,FIBERGLIDE | 118844-16-12 |
| BUSHING.SLEEVE,1.38x1.38,FIBERGLIDE | 118844-22-22 |
| CAM FOLLOWER | 71847 |
| O-RING | 51300-273-B |
| O-RING | 51300-381-B |
| RING,GLYD,11.0DIA-ROD | 30119319 |
| RING,GLYD,11.5 DIA-ROD(S48130-340A-29) | 30119143 |
| RING,GLYD,10.0 DIA-ROD | 118375 |
| RING,THRUST,.125x7.75x10.0 | 30119357 |
| PISTON RING | 30173156 |
| SEAL,LIP 8.25x9.5x.62 | 77039 |
| SEAL,WIPER,11.0DIA-ROD | 119547 |
| RING,RETAINER,EXTERNAL | 30117775-2 |
| BUSHING,SLEEVE,SPLIT,1.25X10.0DIA | 119358 |
| BUSHING,SLEEVE,1.0X1.25 | 115176 |
| BEARING,SINTERED,BRONZE,FLANGED | 112754-130 |
| SLEEVE,SHOT PIN,PH-100 | 30151951 |
| FLANGE BUSHING,SHOT PIN,PH-100 | 30151961 |
| SEAL,ROD,1.5BORE | 110056 |
| SEAL,PISTON (same as 110061) | 110061-326 |
| SHOT PIN,PH-100 | 30173958 |
| O-RING | 51300-226-B |
| RING, RETAINING - INTERNAL | 53500-225 |
| BLADDER,RESERVOIR TDS9S 5 gallon | 110191-501 |
| GASKET,COVER | 110132 |
| O-RING | 51300-038-B |
| BREATHER,RESERVOIR | 71613 |
| SEALS,ACCUM,6" W/LOW TEMP NITRILE | 30124575-2 |
| SEALS,ACCUM,2" W/LOW TEMP NITRILE | 30124576-2 |
| SEAL KIT FLR 4" ID ACCUMULATOR W/LT NITR | 87605-2 |
| LINER,STEM,UPPER | 98290 |
| SEAL,POLYPAK,3.875,STD.BORE,TDS | 98291+30 |
| O-RING | 51300-277-B |
| (MT)OIL SEAL(veton),STD.BORE,TDS | 91250-1 |
| ISOLATOR,UPPER BEARING | 30173521 |
| SHIELD, BEARING,SMALL BORE, TDS 4S | 30154362 |
| (MT)TDS9S SHIM,BRG RETAIN.002 | 109586-1 |
| (MT)TDS9S SHIM,BRG RETAIN.003 | 109586-2 |
| (MT)TDS9S SHIM,BRG RETAIN.005 | 109586-3 |
| (MT)TDS9S SHIM,BRG RETAIN.010 | 109586-4 |
| (MT)TDS9S SHIM,BRG RETAIN.031 | 109586-5 |
| (MT)BEARING,ROLLER,SPHERICAL,80X170 | 117987 |
| (MT)BEARING,ROLLER,CYLINDRICAL,75X160MM | 109522 |
| (MT)BEARING,ROLLER,TAPER,200X310MM | 109519 |
| (MT)BEARING,THRUST,21.5OD | 30120556 |
| (MT)BEARING,ROLLER,CYLINDRICAL,200X360MM | 109521 |
| GEAR,BULL,HELICAL | 30158574 |
| GEAR,COMPOUND,HELICAL | 30158573 |
| SLEEVE, MAINSHAFT, TDS11 | 110040-1 |
| (MT)SLEEVE,FLANGED,7.87ID,300SS | 109591 |
| (MT)SLEEVE,STEM,STD.BORE,TDS | 91829-1 |
| O-RING | 51300-387-F |
| (MT)O-RING,.275x50.5 | 110008 |
| O-RING | 51300-277-B |
| O-RING | 51300-385-F |
| (MT)NOZZLE,SPRAY,.86GPM | 88990-9 |
| (MT)NOZZLE,SPRAY,1.3GPM | 88990-10 |
| (MT)TUBE,BEARING,LUBE,A36 | 109566 |
| (MT)PUMP,LUBE,GEARBOX,ASSY,TDS9S | 117603-1 |
| SCREW, CAP-HEX HD DRILLED | 50016-28-C5D |
| SCREW, CAP-HEX HD DRILLED | 50012-20-C5D |
| WASHER, LOCK-REGULAR (ALT P/N: 025062) | 50912-C |
| WASHER, LOCK-REGULAR | 50916-C |
| O-RING | 51300-223-F |
| O-RING | 51300-279-B |
| PIN,DOWEL | 51216-24 |
| GEAR,HELICAL,PINION | 117939 |
