| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API |
| Model Number: | 2028627 |
| Minimum Order Quantity: | 1 |
| Price: | NEGOTIABLE |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 5-8 DAYS |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1000 SET/Month |
| Material: | Alloy;Steel | Customization: | Acceptable |
|---|---|---|---|
| Operation Pressure: | Atmospheric Pressure | Transport Package: | Carton/Wooden Box |
| Application: | Drilling | Condition: | New |
| Highlight: | Top Drive Die Head Assembly,PS Series Top Drive Parts,2028627 Die Head Assembly |
||

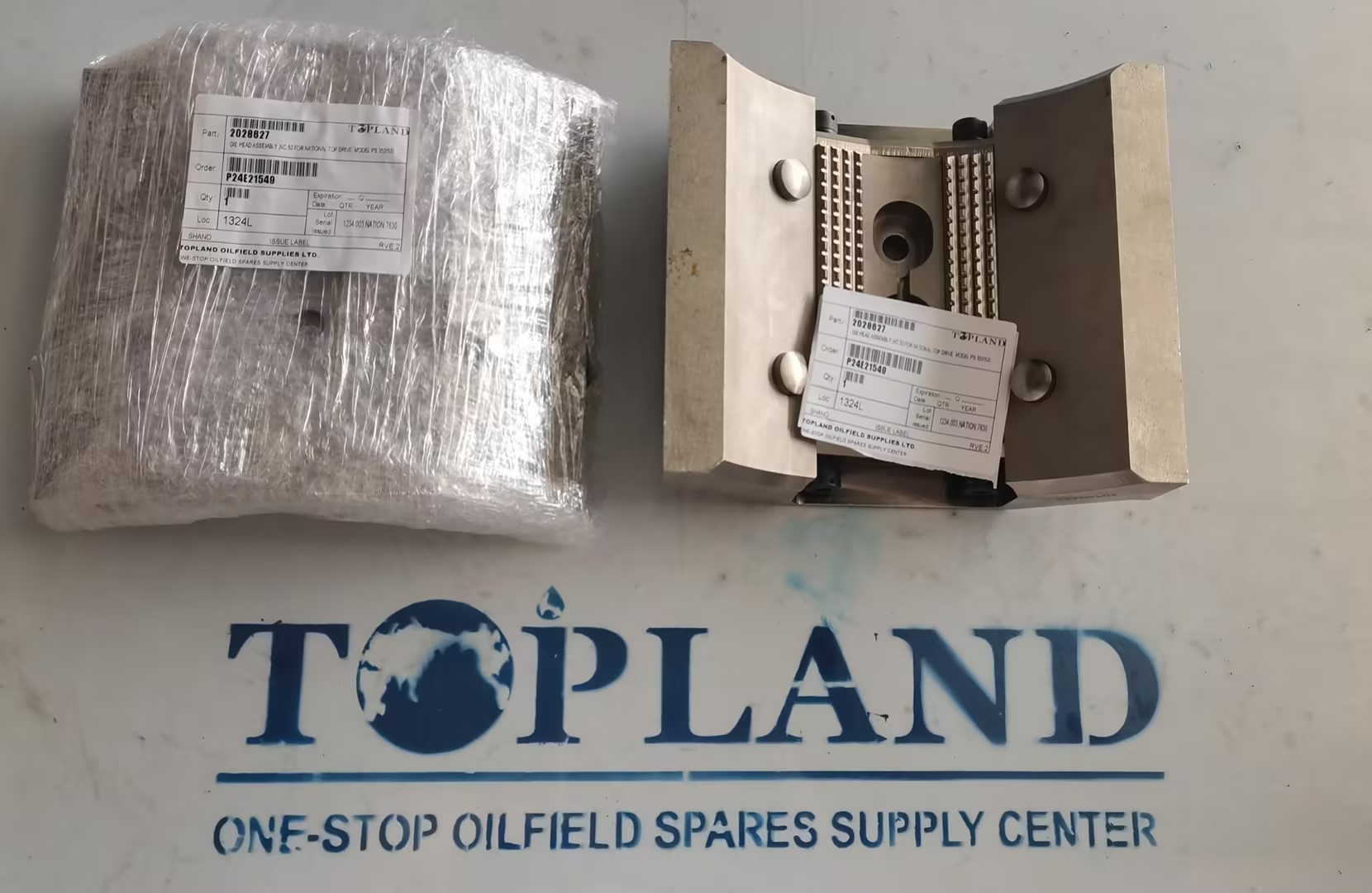

DIE HEAD ASSEMBLY PN 2028627 DIE HEAD ASSEMBLY NC 50 FORNATIONAL TOP DRIVE MODEL PS TOP DRIVE PARTS
Description of TDS
Top drive is a key component that combines the functionality of rotary drill pipe and kelly drilling systems. Compared with the kelly drilling system, it has many advantages, such as a larger drill pipe control height and a higher safety factor in complex wellbore conditions; three times the drilling capacity, resulting in shorter connection time and higher drilling efficiency; and longer reaming and post-reaming heights to increase safety when dealing with complex conditions downhole.
| S/N | P/N | Description |
| 01 | 1238.003.GENRAL.0094 | P/N :2032807 , BRACKET, BLOWER MOTOR, OLCS FOR TOP DRIVE PS 500 |
| 02 | 1238.003.GENRAL.0095 | P/N :2032809 , CLAMP, HUMP HOSE 5- 1/2" FOR TOP DRIVE PS 500 |
| 03 | 1238.003.GENRAL.0096 | P/N :2032810 , HOSE, HUMP, REDUCER FOR TOP DRIVE PS 500 |
| 04 | 1238.003.GENRAL.0097 | P/N :2032811 , CLAMP, HUMP HOSE 4- 1/2" FOR TOP DRIVE PS 500 |
| 05 | 1238.003.GENRAL.0098 | P/N :2032830 , SPACER, BLEED BLOWER MOTOR FOR TOP DRIVE PS 500 |
| 06 | 1238.003.GENRAL.0100 | P/N :2032972 , RETAINER, BLOWER WHEEL FOR TOP DRIVE PS 500 |
| 07 | 1238.003.GENRAL.0087 | P/N :2032787 , GASKET, LOWER PLENUM FOR TOP DRIVE PS 500 |
| 08 | 1238.003.GENRAL.0088 | P/N :2032788 , RETAINER, BOLT FOR TOP DRIVE PS 500 |
| 09 | 1238.003.GENRAL.0090 | P/N :2032790 , SPACER FOR TOP DRIVE PS 500 |
| 10 | 1238.003.GENRAL.0259 | P/N :7810072 , KIT BOLT FOR TOP DRIVE PS 500 |
| 11 | 1238.003.GENRAL.0274 | P/N :7818167 , SWITCH, UE B121 TEMPERATURE FOR TOP DRIVE PS 500 |
| 12 | 1238.003.GENRAL.0277 | P/N :7818887 , STEM, BOSS MALE 1 1/4" DIXON B FOR TOP DRIVE PS 500 |
| 13 | 1238.003.GENRAL.0087 | P/N :2032787 , GASKET, LOWER PLENUM FOR TOP DRIVE PS 500 |
| 14 | 1238.003.GENRAL.0088 | P/N :2032788 , RETAINER, BOLT FOR TOP DRIVE PS 500 |
| 15 | 1238.003.GENRAL.0090 | P/N :2032790 , SPACER FOR TOP DRIVE PS 500 |
| 16 | 1238.003.GENRAL.0259 | P/N :7810072 , KIT BOLT FOR TOP DRIVE PS 500 |
| 17 | 1238.003.GENRAL.0274 | P/N :7818167 , SWITCH, UE B121 TEMPERATURE FOR TOP DRIVE PS 500 |
| 18 | 1238.003.GENRAL.0289 | P/N :7821604 , VENT, 1/2"STAINLESS CROUSE HI FOR TOP DRIVE PS 500 |
| 19 | 1238.003.GENRAL.0291 | P/N :7828071 , COUPLING, LOVEJOY ELASTOMERIC FOR TOP DRIVE PS 500 |
| 20 | 1238.003.GENRAL.0292 | P/N :7828072 , CLAMP, GRAYLOC 49502WB 2- 1/2 -FOR TOP DRIVE PS 500 |
