| Place of Origin: | China |
|---|---|
| Brand Name: | Topland |
| Certification: | API |
| Model Number: | JH |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard wooden package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 500 PER MONTH |
| Product Name: | Top Drive IBOP Assembly | Weight: | 74 Kg |
|---|---|---|---|
| Connection: | 6 5/8" REG | Pressure: | 5000-15000psi |
| Highlight: | Canrig Top Drive IBOP Assembly,H2S resistance IBOP for Top Drive |
||
We produce H2S resistance IBOP for Top Drive, which adopt high quality import sulfur-resisitance material.
World famous brands of Top Drive including Varco, Canrig, NOV, BPM, JH, etc.Top Drive Parts including Gooseneck, saver sub, IBOP, gear, stuffing box, washpipe, etc.

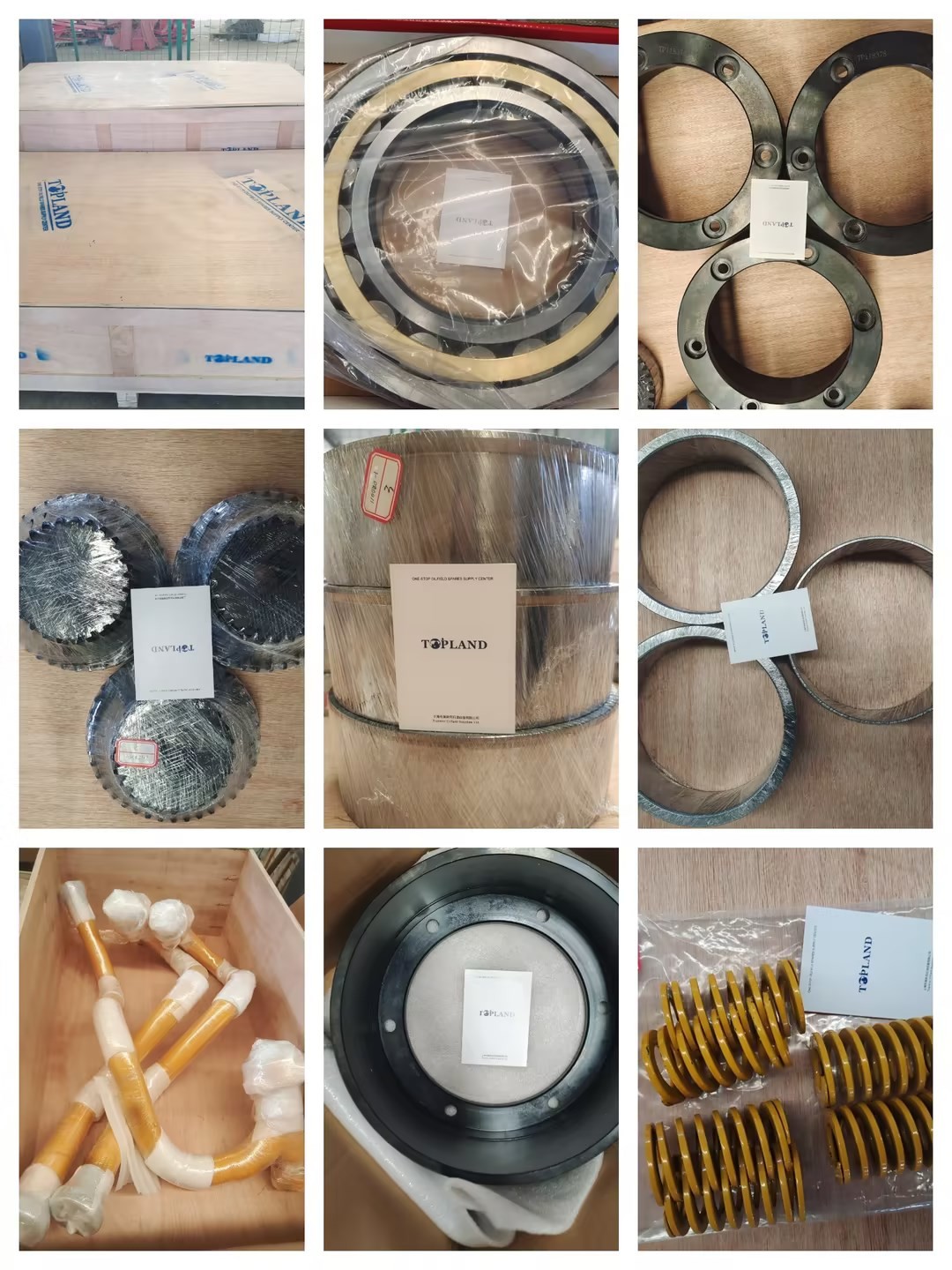

Topland can supply China made interchangeable parts for above mentioned Top Drive Parts, the following picture is just for reference.
| № | Description | P/N |
| 1 | Cover | 692-44-0 |
| 2 | Travelling skids | 694-22-0 |
| 3 | Hydraulic valve body | 694-32-0 |
| 4 | Pressure gauge panel | 694-49-0 |
| 5 | Manifold protection | 694-82-0 |
| 6 | Fastening plate adapter | 696-12-0 |
| 7 | Mud tube | 722-10-0 |
| 8 | Grease system manifold | 731-44-0 |
| 9 | Valve | 738-12-0 |
| 10 | Supporting plate | 742-54-1 |
| 11 | Strop unit fixing support | 743-11-0 |
| 12 | Alignment ring | 743-13-0 |
| 13 | Shock-absorbing plate | 747-18-0 |
| 14 | Tee | 755-23-0-L |
| 15 | Tee | 755-23-0-R |
| 16 | Strop unit fixer | 810-11-0 |
| 17 | Mud line clamp | 815-37-0 |
| 18 | Fastening end | 829-13-0-26 |
| 19 | Fastening end | 829-13-0-43 |
| 20 | Lock rod | 829-14-0-26 |
| 21 | Lock rod | 829-14-0-43 |
| 22 | Guide bell | 829-15-0(DT31716) |
| 23 | Guide bell mounting pin | 829-17-0 |
| 24 | Washer | 829-18-0 |
| 25 | Hydraulic tube | 829-22-0 |
| 26 | Hydraulic tube | 829-26-0 |
| 27 | Safety plate | 829-35-0 |
| 28 | Fixer | 829-36-0 |
| 29 | Inner clamp protective cover | 829-38-0-26 |
| 30 | Body | 829-38-0-43 |
| 31 | Hinge manifold | 829-51-0(DT33960) |
| 32 | Hinge manifold safety casing | 829-55-0 |
| 33 | Gooseneck | 829-56-0-275 |
| 34 | Fastening plate | 829-56-0-500 |
| 35 | Pin | 837-21-0 |
| 36 | Lock-plate | 838-61-0 |
| 37 | U-bolt | 839-10-7 |
| 38 | Controller | 841-12-0 |
| 39 | Controller | 841-13-0 |
| 40 | Polymer runners | 841-34-0 |
| 41 | Controller | 841-37-0 |
| 42 | Shim | 841-38-0 |
| 43 | Controller | 841-39-0 |
| 44 | Grounding plate | 844-31-0 |
| 45 | Pin | 845-34-0 |
| 46 | Shoulder screw | 845-35-0 |
| 47 | Rod | 845-36-0 |
| 48 | Holding pawl | 850-17-0 |
| 49 | Pin | 850-18-0 |
| 50 | Pin safety line | 850-72-0 |
| 51 | Pin locker | 891-51-0 |
| 52 | Wire guide frame | 891-63-0 |
| 53 | Moving frame | 891-63-1 |
| 54 | Moving frame | 891-63-2 |
| 55 | Adjuster | 891-64-0 |
| 56 | Tension cylinder | 891-98-0 |
| 57 | Spacer | 892-89-0 |
| 58 | Safety chain | 893-97-0 |
| 59 | Valve fastening | 895-82-0 |
| 60 | Joystick | 900-23-2 |
| 61 | Joystick | 900-23-3 |
| 62 | Joystick | 900-23-4 |
| 63 | Front panel | 900-48-1 |
| 64 | Adapter | 901-38-1 |
| 65 | TDX Microcontroller box | 909-02-1 |
| 66 | Junction Box Rear Panel | 909-02-3 |
| 67 | Lock | 909-02-4 |
| 68 | Control washer | 909-02-5 |
| 69 | Sight glass lock | 911-12-0 |
| 70 | Sight glass | 911-13-0 |
| 71 | Sight glass gasket | 911-14-0 |
| 72 | Manifold rotation guide liner | 914-12-0 |
| 73 | Screw | 914-13-0 |
| 74 | Screw | 914-14-0 |
| 75 | Split shear ring | 920-12-0 |
| 76 | Liner | 920-13-0 |
| 77 | Releasing lever | 920-16-0 |
| 78 | Pipe manipulator gear casing | 921-12-0 |
| 79 | End fitting | 929-10-5 |
| 80 | Oil pump mounting | 929-17-0 |
| 81 | Rotating manifold support frame | 964-10-0 |
| 82 | eccentric shaft | 966-12-0 |
| 83 | Spacer plate ring | 966-13-0 |
| 84 | Fastening plate | 966-16-0 |
| 85 | Spacer ring | 966-21-0 |
| 86 | Main bearing shim kit | 966-26-0 |
| 87 | Telescopic tube assembly | AY10028 |
| 88 | Telescopic tube assembly | AY10028-1 |
| 89 | Telescopic tube assembly | AY10028-2 |
| 90 | Telescopic tube assembly | AY10028-3 |
| 91 | Telescopic tube assembly | AY10028-5 |
| 92 | Mud tube assembly | AY10031 |
| 93 | HPU hose assembly | AY10498 |
| 94 | Spring unit kit | AY10642 |
| 95 | Purge kit | AY10661 |
| 96 | Electrical module, voltage feedback | AY10899 |
| 97 | Diode bridge assembly | AY10906 |
| 98 | Holding tongs kit | AY10932 |
| 99 | Manifold assembly | AY10962 |
