| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API |
| Model Number: | 110703 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 5-8 days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 100 Per Month |
| Application: | Oil Drilling | Size: | As Customer Request Or As Drawing |
|---|---|---|---|
| Processing Type: | Forging | ||

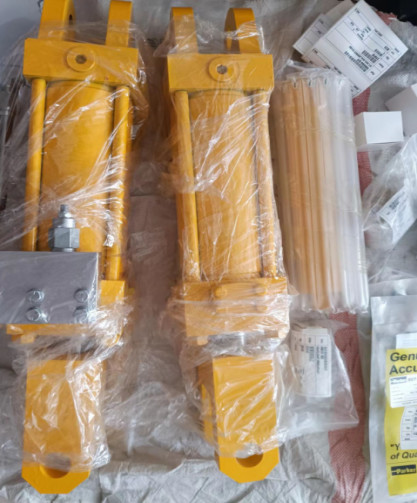

| Highlight: | Tesco Actuator Assy,Top Drive Parts 110703 |
||
Description of Top Drive Spare Parts:
Top drive is a key components combing the function of swivel and kellly drilling system,in contrast to kelly and rotary table drilling system, which drives the drill string from the top end . In contrast to the kelly drilling system , it provides many advantage such as more drill pipe handling height which due to higher safety factor during complicated wellbore condition, capacity of drilling triples which lead to shorter connecting time and higher drilling efficiency, longer ream and backream height to increase the safety during handling of downhole complexity.
Function
The faucet flushing packing system reduces the effective differential pressure by providing pressurized lubricant to the low pressure side of the seal to increase seal life. The pressure of the high-pressure lubricating oil is predetermined according to the proportion of the mud. The value is between the mud pressure and the atmospheric pressure. Usually, each sealing ring is subjected to the same pressure difference. The pressure of the lubricating oil is generally lower than the mud pressure, preventing the lubricating oil from excessive pressure and leaking.
We are the professional top drive provider with business of repair,on-site operation&maintenance,lease and technical training.
We can supply spare parts for Varco,Canrig,Tesco,MH,BPM and so on.
|
TESCO Top Drive Spare Parts list: |
|
| 1320014 | Cylinder Lock, P/H, EXI/HXI |
| 1320015 | Ring,Snap,Internal,Truarc N500-500 |
| 820256 | Ring,Snap,Internal,Truarc N500-150 |
| 510239 | Screw,cap Nex HD 1″-8UNCx8,5,GR8,PLD,DR,HD |
| 0047 | GAUGE Lig Filled 0-300Psi/kPa 2,5″ODx1/4″MNPT,LM |
| 0072 | TERMO 304 S/S,1/2*3/4*6.0 LAG |
| 0070 | TERMOMETR BIMETEL 0-250, 1/2″ |
| 1320020 | VALVE CATRIDGE RELIEF 400Psi,50GPM SUN RPGC-LEN |
| 0062 | GAUGE Lig Filled 0-100Psi/kPa 2,5″ODx1/4″MNPT,LM |
| 1502 | Fiting Hyd, STR 8MJICx8MORB |
| 0204 | Fiting Hyd, 90°ELB 8MJICx8MORB |
| 0200 | Fiting Hyd, 90°ELB 4MJICx6MORB |
| 1501 | Fiting Hyd, STR 6MJICx8MORB |
| 820278 | Hose Hyd,100R2-AT 16*19″FJICxFJIC |
| 5116 | Hose Hyd,100R2-AT 12*27″FJICxFJIC |
| 1320104 | Hose Hyd,100R2-AT 8*18″FJICxLONG-90°FJIC |
| 5445 | Hose Hyd,100R2-AT 8*65″FJICxFJIC |
| 731004 | Hose Hyd,100R2-AT 8*11″FJICx90°FJIC |
| 17322 | Hose Hyd,100R2-AT 6*14″FJICx90°FJIC |
| 1130089 | Hose Hyd,100R2-AT 6*8,5″FJICxFJIC |
| 1120065 | Hose Hyd,100R2-AT 8*36″FJICx90°FJIC |
| 3465 | Hose Hyd,100R2-AT 6*34″FJICxFJIC |
| 1550100 | Hose Hyd,100R2-AT 8*47″FJICx90°FJIC |
| 1130087 | Hose Hyd,100R2-AT 6*39″FJICx90°FJIC |
| 17325 | Hose Hyd,100R2-AT 6*15″FJICx90°FJIC |
| 1320107 | Hose Hyd,100R2-AT 6*41″FJICx90°FJIC |
| 820281 | Hose Hyd,100R2-AT 6*62″FJICx90°FJIC |
| 1320242 | Hose Hyd,100R2-AT 4*48″FJICx90°FJIC |
| 820161 | STEEL SHIM STOCK .010″ THK |
| 820162 | STEEL SHIM STOCK .005″ THK |
| 820163 | STEEL SHIM STOCK .002″ THK |
| 820157 | STEEL SHIM STOCK .010″ THK |
| 820158 | STEEL SHIM STOCK .005″ THK |
| 820159 | STEEL SHIM STOCK .002″ THK |
| 820067 | MUD SHIELD, GEARBOX, T100 |
| 810389 | SLEEVE WEAR SEAL LOWER QUILL |
| 820273 | ADAPTER SPLINE 9T PUMP LUBE 350-EXI-600 |
| 10058 | PUMP,GEAR,HPI,#16 SAE PORTS |
| 810344 | PIN GEAR BOX LINK EMI 600 |
| 731028 | SCREW CAP HEX HD 3/8 -16 UNC x 1-3/4″ GR8 PLD DR HD |
| 2697 | BREATHER ,AIR ,1O-MICRON,3/8″MNPT ,STEEL,PLD |
| 0009 | VALVE BALL 2-WAY 2000-PSI WOG 3/4″FNPTx3/4″FNPT |
| 0231 | FITTING,HYD,STR,#12MORBx#12MNPT |
| 0100 | Fittinq,Pipe Cap,3000-psi 2″FNPT |
| 1338 | FITTING,PIPE,NIPPLE,SCH80,2″MNPTxCLOSE |
| 0281 | Fittinq, Hyd Str #12MJICx#12MNPT |
| 0451 | PLUG MAGNETIC SKT DRIVE 3/4″MNPT |
