| Place of Origin: | China |
|---|---|
| Brand Name: | Topland |
| Certification: | API |
| Model Number: | Customised |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Package |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 5000 Pieces/Year |
| Operation Pressure: | Atmospheric Pressure | Machine Type: | Drilling Equipment |
|---|---|---|---|
| HS Code: | 84314310 | Specification: | 15kg |
| Material: | Stainless Steel | ||

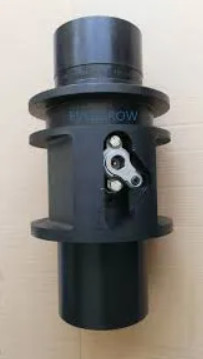

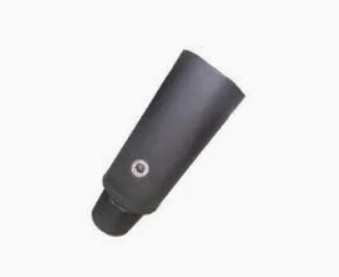

| Highlight: | Canrig Top Drive Upper IBOP,Upper IBOP for Varco Drilling Equipment,Top Drive Upper IBOP Replacement |
||
|
Annular BOP Model
|
JD-FH28-21
|
JD-FH35-21
|
JD-FH18-35
|
JD-FH28-35
|
JD-FH35-35
|
|
|
Bore Dia.
|
mm
|
280
|
346
|
180
|
280
|
346
|
|
in
|
11
|
135/8
|
7
|
11
|
135/8
|
|
|
Rated Working Pressure
|
Mpa
|
21
|
21
|
35
|
35
|
35
|
|
psi
|
3,000
|
3,000
|
5,000
|
5,000
|
5,000
|
|
|
Shell Testing Pressure
|
Mpa
|
42
|
42
|
70
|
70
|
70
|
|
psi
|
6,000
|
6,000
|
10,000
|
10,000
|
10,000
|
|
|
Recom.Hyd.Pressure
|
Mpa
|
8.4~10.5
|
/
|
/
|
/
|
/
|
|
psi
|
1,200-1,500
|
/
|
/
|
/
|
/
|
|
|
Liters to Open
|
L
|
33
|
66
|
15
|
57
|
66
|
|
Gal(us)
|
8.68
|
17
|
4
|
15
|
17
|
|
|
Liters to Close
|
L
|
48
|
90
|
20
|
72
|
90
|
|
Gal(us)
|
12.6
|
24
|
5
|
19
|
24
|
|
|
Inlet and Outlet Size of Control Pipeline (in)
|
NPT 1
|
NPT 1
|
NPT 1
|
NPT 1
|
NPT 1
|
NPT 1
|
|
Working Temperature
|
-29ºC-121ºC
|
|||||
|
Media
|
Crude oil, natural gas & drilling fluid containing H2S
|
|||||
|
Weight
|
kg
|
3,272
|
5,352
|
1,444
|
4,328
|
6,384
|
|
lbs
|
9,340
|
11,800
|
3,184
|
9,522
|
14,015
|
|
|
Dimensions(ODXH)
|
mm
|
1032x930
|
1245x1,090
|
745x788
|
1,135x1,065
|
1,271x1,220
|
|
in
|
45x42
|
49x43
|
29x31
|
45x42
|
50x4
|
|
Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
