| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API Top Drive Parts Saver Sub for Oilfield TDS 11s |
| Model Number: | TDS 11SA Canrig |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 20 DAYS |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | As Per Request |
| Application: | Industrial Usage | HS Code: | 84314310 |
|---|---|---|---|
| Pressure: | Low Pressure | Material: | Carbon Steel |
| Connection Form: | Flange | Actuator: | Manual |
| Highlight: | Top Drive Parts Saver Sub,Tds 11sa Canrig Parts |
||

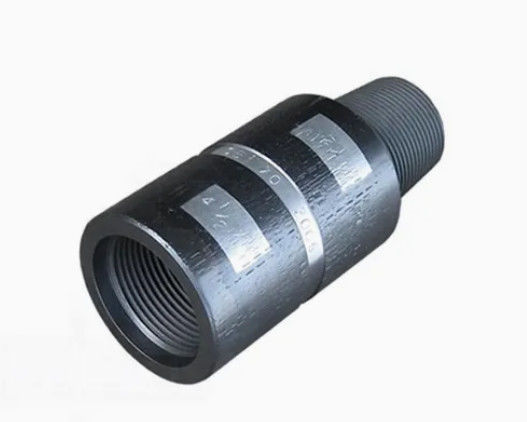

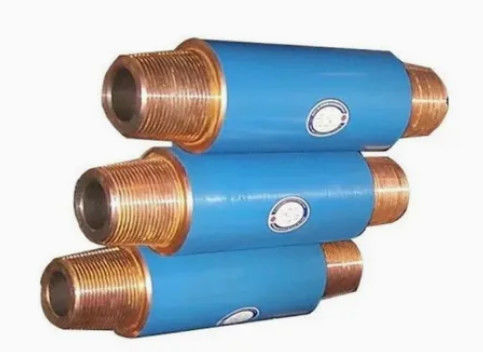

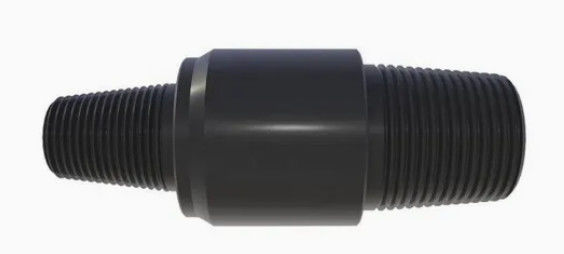

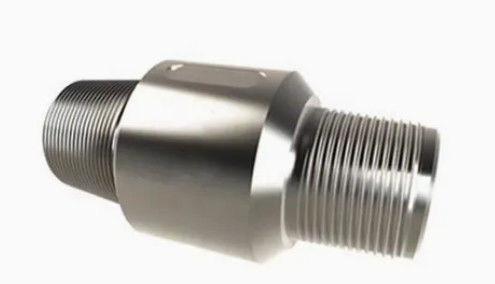

API Specification Top Drive Saver Sub For Oilfield
Specification
|
Item |
O.D. |
I.D. |
OAL |
Connection |
|
(mm/inch) |
(mm/inch) |
(mm/inch) |
API |
|
|
1 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN*NC31 PIN |
|
2 |
187(7-23/64) |
44.5(1-3/4) |
432(17) |
6 5/8REG PIN LH*NC31 PIN LH |
|
3 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN*NC38 PIN |
|
4 |
187(7-23/64) |
57.2(2-1/4) |
445(17-1/2) |
6 5/8REG PIN LH*NC38 PIN LH |
|
5 |
187(7-23/64) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN*NC50 PIN |
|
6 |
197(7-3/4) |
57.2(2-1/4) |
458(18) |
6 5/8REG PIN*NC38 PIN |
|
7 |
197(7-3/4) |
71.4(2-13/16) |
470(18-1/2) |
6 5/8REG PIN*NC50 PIN |
|
8 |
197(7-3/4) |
71.4(2-13/16) |
458(18) |
6 5/8REG PIN LH*6 5/8REG PIN LH |
| № | Description | P/N |
| 1 | Cover | 692-44-0 |
| 2 | Travelling skids | 694-22-0 |
| 3 | Hydraulic valve body | 694-32-0 |
| 4 | Pressure gauge panel | 694-49-0 |
| 5 | Manifold protection | 694-82-0 |
| 6 | Fastening plate adapter | 696-12-0 |
| 7 | Mud tube | 722-10-0 |
| 8 | Grease system manifold | 731-44-0 |
| 9 | Valve | 738-12-0 |
| 10 | Supporting plate | 742-54-1 |
| 11 | Strop unit fixing support | 743-11-0 |
| 12 | Alignment ring | 743-13-0 |
| 13 | Shock-absorbing plate | 747-18-0 |
| 14 | Tee | 755-23-0-L |
| 15 | Tee | 755-23-0-R |
| 16 | Strop unit fixer | 810-11-0 |
| 17 | Mud line clamp | 815-37-0 |
| 18 | Fastening end | 829-13-0-26 |
| 19 | Fastening end | 829-13-0-43 |
| 20 | Lock rod | 829-14-0-26 |
| 21 | Lock rod | 829-14-0-43 |
| 22 | Guide bell | 829-15-0(DT31716) |
| 23 | Guide bell mounting pin | 829-17-0 |
| 24 | Washer | 829-18-0 |
| 25 | Hydraulic tube | 829-22-0 |
| 26 | Hydraulic tube | 829-26-0 |
| 27 | Safety plate | 829-35-0 |
| 28 | Fixer | 829-36-0 |
| 29 | Inner clamp protective cover | 829-38-0-26 |
| 30 | Body | 829-38-0-43 |
| 31 | Hinge manifold | 829-51-0(DT33960) |
| 32 | Hinge manifold safety casing | 829-55-0 |
| 33 | Gooseneck | 829-56-0-275 |
| 34 | Fastening plate | 829-56-0-500 |
| 35 | Pin | 837-21-0 |
| 36 | Lock-plate | 838-61-0 |
| 37 | U-bolt | 839-10-7 |
| 38 | Controller | 841-12-0 |
| 39 | Controller | 841-13-0 |
| 40 | Polymer runners | 841-34-0 |
| 41 | Controller | 841-37-0 |
| 42 | Shim | 841-38-0 |
| 43 | Controller | 841-39-0 |
| 44 | Grounding plate | 844-31-0 |
| 45 | Pin | 845-34-0 |
| 46 | Shoulder screw | 845-35-0 |
| 47 | Rod | 845-36-0 |
| 48 | Holding pawl | 850-17-0 |
| 49 | Pin | 850-18-0 |
| 50 | Pin safety line | 850-72-0 |
| 51 | Pin locker | 891-51-0 |
| 52 | Wire guide frame | 891-63-0 |
| 53 | Moving frame | 891-63-1 |
| 54 | Moving frame | 891-63-2 |
| 55 | Adjuster | 891-64-0 |
| 56 | Tension cylinder | 891-98-0 |
| 57 | Spacer | 892-89-0 |
| 58 | Safety chain | 893-97-0 |
| 59 | Valve fastening | 895-82-0 |
| 60 | Joystick | 900-23-2 |
| 61 | Joystick | 900-23-3 |
| 62 | Joystick | 900-23-4 |
| 63 | Front panel | 900-48-1 |
| 64 | Adapter | 901-38-1 |
| 65 | TDX Microcontroller box | 909-02-1 |
| 66 | Junction Box Rear Panel | 909-02-3 |
| 67 | Lock | 909-02-4 |
| 68 | Control washer | 909-02-5 |
| 69 | Sight glass lock | 911-12-0 |
| 70 | Sight glass | 911-13-0 |
| 71 | Sight glass gasket | 911-14-0 |
| 72 | Manifold rotation guide liner | 914-12-0 |
| 73 | Screw | 914-13-0 |
| 74 | Screw | 914-14-0 |
| 75 | Split shear ring | 920-12-0 |
| 76 | Liner | 920-13-0 |
| 77 | Releasing lever | 920-16-0 |
| 78 | Pipe manipulator gear casing | 921-12-0 |
| 79 | End fitting | 929-10-5 |
| 80 | Oil pump mounting | 929-17-0 |
| 81 | Rotating manifold support frame | 964-10-0 |
| 82 | eccentric shaft | 966-12-0 |
| 83 | Spacer plate ring | 966-13-0 |
| 84 | Fastening plate | 966-16-0 |
| 85 | Spacer ring | 966-21-0 |
| 86 | Main bearing shim kit | 966-26-0 |
| 87 | Telescopic tube assembly | AY10028 |
| 88 | Telescopic tube assembly | AY10028-1 |
| 89 | Telescopic tube assembly | AY10028-2 |
| 90 | Telescopic tube assembly | AY10028-3 |
| 91 | Telescopic tube assembly | AY10028-5 |
| 92 | Mud tube assembly | AY10031 |
| 93 | HPU hose assembly | AY10498 |
| 94 | Spring unit kit | AY10642 |
| 95 | Purge kit | AY10661 |
| 96 | Electrical module, voltage feedback | AY10899 |
| 97 | Diode bridge assembly | AY10906 |
| 98 | Holding tongs kit | AY10932 |
| 99 | Manifold assembly | AY10962 |
| 100 | TDX brake drive device | AY11000 |
Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
