| Place of Origin: | China |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | CE, ISO 9001:2000, API |
| Model Number: | varco11sa canrig |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Export Standard Packing |
| Delivery Time: | 20 DAYS |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 200 Piece/Pieces Per Month |
| HS Code: | 84314310 | Manufacturing Process: | Forging |
|---|---|---|---|
| Material: | Alloy Steel | Surface Treatment: | Polishing |
| Highlight: | Top Drive Spares 121131,Polishing Surface Top Drive Spares |
||

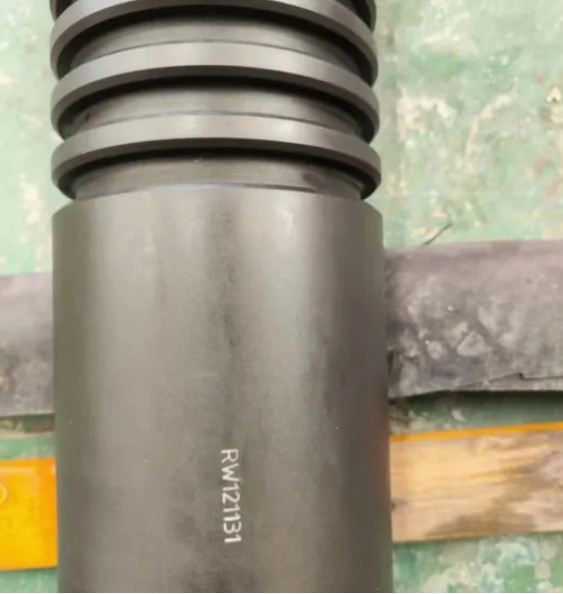

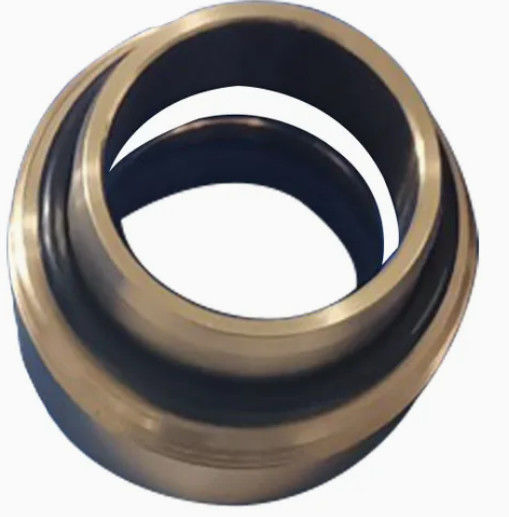

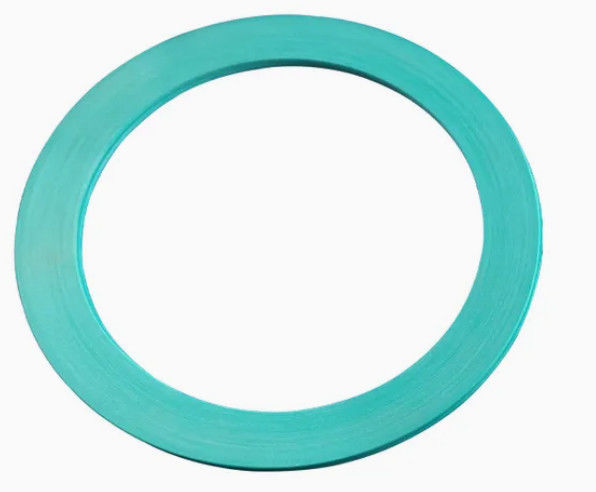

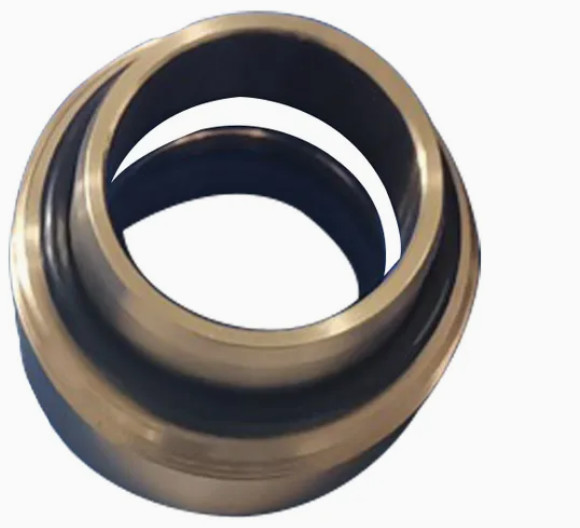

Topland can supply China made interchangeable parts for below mentioned Top Drive Parts, the following picture is just for reference.
| № | Description | P/N |
| 1 | Guide tention rope | 1001-113-1020 |
| 2 | Pin | 1006-038-150 |
| 3 | Pin | 1006-100-438 |
| 4 | Pin | 1006-150-413 |
| 5 | Coupling bolt pin | 1006-175-475 |
| 6 | Pin | 1006-175-575 |
| 7 | Pin | 1016-100-325 |
| 8 | Coupling bolt body | 1018-225-1225 |
| 9 | Coupling bolt | 1018-250-1713-A |
| 10 | Coupling bolt | 1018-250-2213-A |
| 11 | U-pin | 1019-1396-1752 |
| 12 | Rope | 1022-019-45 |
| 13 | Bearing for Oil pump electric motor | 182003 |
| 14 | Electric motor oil seal | 41125 |
| 15 | Electric motor oil seal | 48062 |
| 16 | Liner bush spacer | 587-06-0 |
| 17 | Stop plate | 587-13-2 |
| 18 | Strp unit inner alignment ring | 587-20-6 |
| 19 | Lifting cylinder rod | 587-21-2 |
| 20 | Piston | 587-21-3 |
| 21 | Cylinder cover | 587-21-4 |
| 22 | Cover fixer | 587-21-5 |
| 23 | Splined tong 3/4" | 587-38-0 |
| 24 | lower seal assembly race | 587-45-0 |
| 25 | Bearing ring spacer | 587-46-0 |
| 26 | Hydraulic tube | 587-50-13 |
| 27 | Fastening | 587-52-2 |
| 28 | Gasket | 587-52-3 |
| 29 | Gooseneck | 587-52-4 |
| 30 | Gooseneck | 587-52-5 |
| 31 | bearing race | 587-66-0 |
| 32 | hydraulic plate suspension bolt | 587-87-0 |
| 33 | suspension bolt nut | 587-88-0 |
| 34 | gear hub o-ring | 587-97-0 |
| 35 | spring locker | 588-04-2 |
| 36 | Left thrust plate | 588-17-0-L |
| 37 | Right thrust plate | 588-17-0-R |
| 38 | Plate | 588-19-0 |
| 39 | Sliding wear pad | 588-20-0 |
| 40 | Anvil fixing pin | 588-26-0 |
| 41 | transverse lock key frame guide plate | 588-45-0 |
| 42 | Lock key frame guide plate longitudinal | 588-46-0 |
| 43 | Lock coupling assembly | 593-01-1 |
| 44 | Lock coupling assembly | 593-01-2 |
| 45 | Manifold | 593-02-3 |
| 46 | FOSV fastening clamp | 593-16-1 |
| 47 | Lock coupling | 593-29-0 |
| 48 | Lock coupling | 593-34-0 |
| 49 | Lock coupling | 593-37-0 |
| 50 | Lock coupling | 593-44-0 |
| 51 | Strop fastening clamp | 594-02-4 |
| 52 | Fastening clamp | 594-02-7 |
| 53 | Manifold | 594-07-0 |
| 54 | Cylinder pin | 595-11-0 |
| 55 | Spline insert | 596-07-0 |
| 56 | Gear protection | 596-16-0 |
| 57 | Oil reflector | 600-20-0 |
| 58 | Upper spring locker | 602-08 |
| 59 | Housing hydraulic coupling | 602-12-0 |
| 60 | Spring | 602-26-0 |
| 61 | Bearing retainer plate | 602-30-0 |
| 62 | Bearing spacer plate | 602-31-0 |
| 63 | Bell-forming body clamp | 602-37-0 |
| 64 | Hydraulic moter gasket | 602-40-0 |
| 65 | Oil pump electric motor bearing | 6204 |
| 66 | Oil pump electric motor bearing | 6205 |
| 67 | Lower blower motor bearing | 6208-RS |
| 68 | Upper blower motor bearing | 6207-RS |
| 69 | Upper Electric motor bearing | 6317 |
| 70 | Hydraulic cylinder | 661-20-0 |
| 71 | Hydraulic manifold | 663-25-0 |
| 72 | Alignment ring | 681-20-0 |
| 73 | Bearing retainer ring | 681-25-0 |
| 74 | tong | 681-26-0 |
| 75 | tong | 681-29-0 |
| 76 | Alignment ring | 682-26-0 |
| 77 | Bearing outer race | 682-28-0 |
| 78 | Plunger | 683-14-0 |
| 79 | Rod | 683-15-0 |
| 80 | Cylinder sealing | 683-16-0 |
| 81 | Oil protection | 685-24-0 |
| 82 | Motor shims kit | 685-29-0 |
| 83 | Main motor adjusting gasket | 685-29-0-003 |
| 84 | Main motor adjusting gasket | 685-29-0-005 |
| 85 | Main motor adjusting gasket | 685-29-0-010 |
| 86 | Main motor adjusting gasket | 685-29-0-015 |
| 87 | Main motor adjusting gasket | 685-29-0-020 |
| 88 | Main motor adjusting gasket | 685-29-0-030 |
| 89 | Main motor adjusting gasket | 685-29-0-050 |
| 90 | Main motor adjusting gasket | 685-29-0-250 |
| 91 | Brake disc adjustment plate | 686-13-0-005 |
| 92 | Brake disc adjustment plate | 686-13-0-010 |
| 93 | Brake disc adjustment plate | 686-13-0-030 |
| 94 | Brake disc adjustment plate | 686-13-0-050 |
| 95 | Gooseneck | 686-16-0 |
| 96 | Spring holding rod | 687-21-0-35 |
| 97 | Flow divider mounting | 689-16-0 |
| 98 | Slewing gear | 691-13-0 |
| 99 | Spacer plate | 691-14-0 |
| 100 | Gear fixer | 691-15-0 |
FAQ
1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.
2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.
4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation
4-2. Fast Quote, Competitive price & within shortest lead time
4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.
4-2. Order tracking service
5:How is the packing?
All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
6: What is your terms of payment?
A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
Topland main products:
1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
