| Place of Origin: | China |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API 7K |
| Model Number: | WQ |
| Minimum Order Quantity: | 1 |
| Price: | 30000-40000 USD PER PIECE |
| Packaging Details: | Standard Package |
| Delivery Time: | 10~20 days |
| Payment Terms: | T/T,Western Union |
| Supply Ability: | 1000 Pieces Per Month |
| Product Name: | WQ Pneumatic Slip | Maximum Working Load: | 250~500 |
|---|---|---|---|
| Working Pressure: | 0.6~0.8Mpa | Model Number: | PS175 PS205 PS275 PS375 PS16 |
| Applicable Pipe Diameter: | 2.3/8~ 14 In | Weight: | 1500kg |
| Highlight: | ps175 ps top drive parts,ps175 top drive spare parts,ps205 ps top drive parts |
||

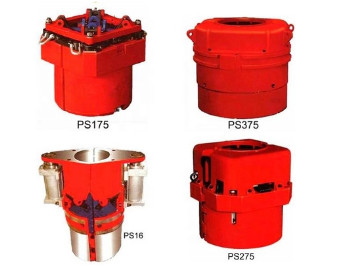

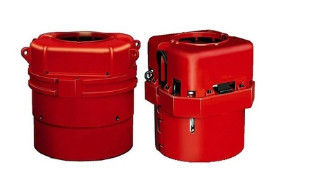

API Standard PS175 PS205 PS275 PS375 PS16 Pneumatic Slip Air Slips For Drill Pipe
PS Series Pneumatic Slips are pneumatic tools which are suitable for all kinds of rotary tables for hoisting drill pipes and handling casings. They are mechanized operating with strong hoisting force and large working range. They are easy to operate and dependable enough. Besides, they can not only reduce the workload but also improve the work efficiency. They are designed and manufactured according to API Spec 7K.
| Model | Rotary table size | Applicable diameter of tubulars (in) | Rated capacity (tons) | Work pressure (MPa) | (Max. pressure MPa) |
| PS175 | 17.1/2 | 2.3/8-5.3/4 | 150 | 0.6-0.8 | 1 |
| PS205 | 20.1/2 | 2.3/8-5.3/4 | 250 | 0.6-0.8 | 1 |
| PS275 | 27.1/2 | 2.3/8-9.7/8 | 350 | 0.6-0.8 | 1 |
| PS375 | 37.1/2 | 2.3/8-14 | 500 | 0.6-0.8 | 1 |
| PS16 | 27.1/2, 37.1/2, 49.1/2, | 3.1/2-7.3/4 | 500 | 0.6-0.8 | 1 |
| PS Portable | 23,27.1/2, 37.1/2, 49.1/2, | 2.3/8-5.1/2 | 250 | 0.6-0.8 | 1 |
| Pin drive | 350 | ||||
| PS slant hole | For slant hole drilling rig | 2.7/8-13.3/8 | 250 | 0.6-0.8 | 1 |
| Russian style 560 | 560mm | 1.9-7 | 350 | 0.6-0.8 | 1 |
