| Place of Origin: | CHINA |
|---|---|
| Brand Name: | TOPLAND |
| Certification: | API-7K |
| Model Number: | PS |
| Minimum Order Quantity: | 1 |
| Price: | USD 10000~30000/SET |
| Packaging Details: | Wooden Carton |
| Delivery Time: | 10~20 Work Days |
| Payment Terms: | T/T,Western Union,D/P |
| Supply Ability: | 500 ea per Month |
| Brand Name: | PSK | Product Name: | Hydraulic Disc Brake |
|---|---|---|---|
| Drilling Rig Type: | ZJ10-120 | Weight: | 1200kg |
| Retarding Torque Of Service Brake: | 35-440 KN`M | Application: | Drawworks Brake System |
| Type: | Brake Assembly | Brake Disc Diameter: | 1200-2100 Mm |
| Highlight: | API 7K Standard Drawworks Parts,PS Type Hydraulic Disc Brake |
||

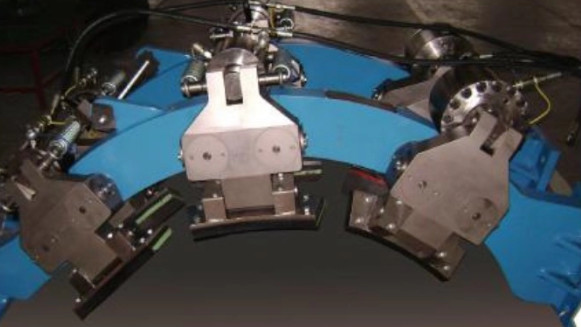

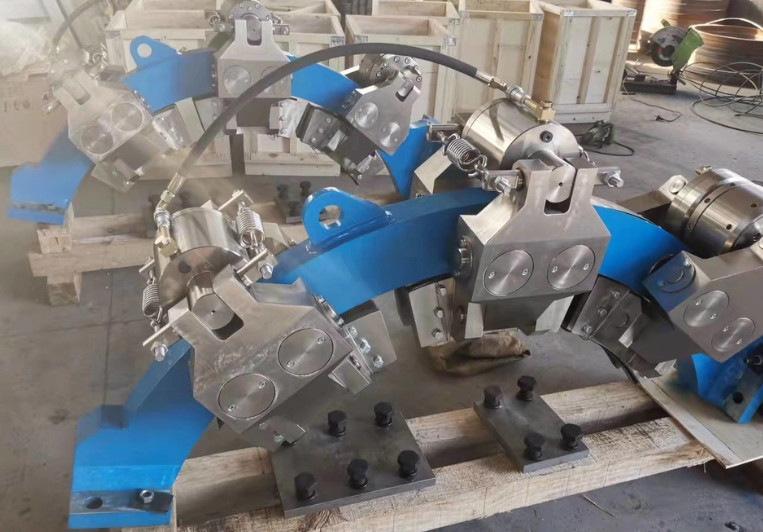

Hydraulic Disc Brake description of Drawworks Parts:
Hydraulic brake is very import device for drawwork. Our disc brake have muliteple braking functions to meet the requirements of drilling Operation, ensuring the smoonth proceeding of the drlling operation, the braking functions are as follow:
1. Service braking
2. Parking braking
3. Emergency braking
4. Crown saver braking
5. Accumulator braking

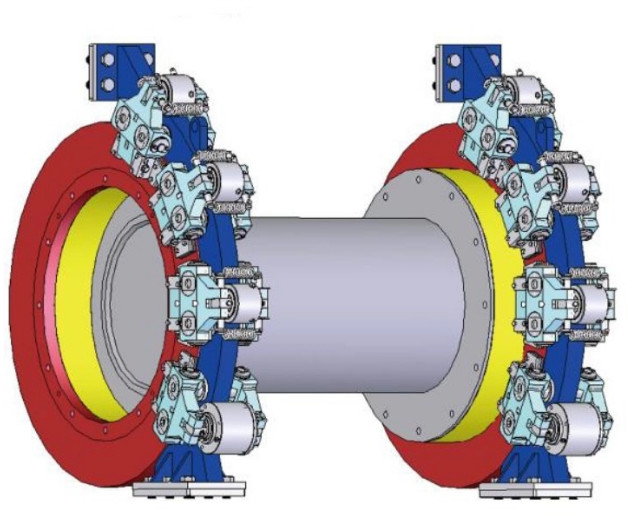

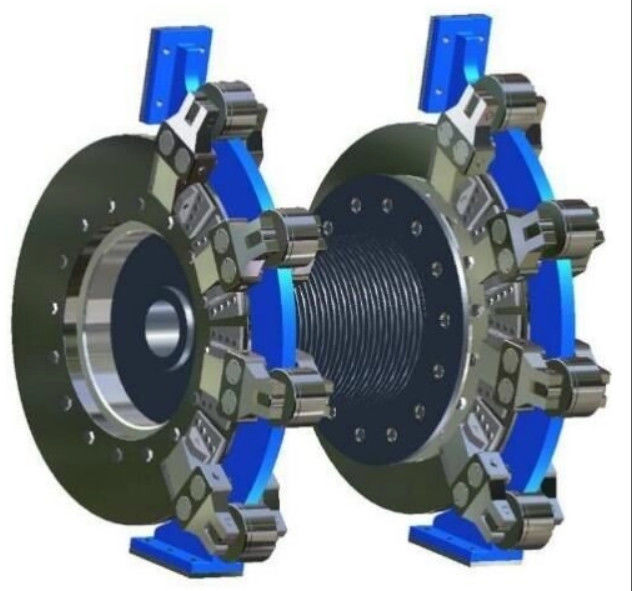

Compostion
1. Brake execute unit
2. hydraulic power unit
3. control unit
Drawworks Parts Hydraulic Disc Brake Features:
1. the two loops control of the main service caliper and the two brake discs of the system ensure that the system can work normally whne one hydraulic loop appear fault
2. Brake Calipers are small in appearance and powerful in brake force, the test by the users and the professional insitute shows that the brake force of Hydraulic disc brake is more powerful than that of the same product made by other manufacturers
3. The Particular forms of clearance adjustments such as oil adjustment clearance, grease adjustment clearance adjustment, such as mechanical adjustmet clearance designed to meet the individual requirements of users.
4. Various kinds of brake discs, such as entirely forging discs,, jointing discs, air cooling discs, water cooling discs are designed to meet the individual drilling condition.
5. Hydraulic power unit is compact in configuration, convernient in maintain, the two pumps, two loops and the accumulator of the unit ensure the safety whne in use.
6. There are various kinds of hydraulic power unit, we can also produce the comprehensive type hydraulic unit required by disc brake and mechanized equipment
7. In addition to the hydraulic control unit, Our electric controls unit to meet the demands of the customers, the control unit is modularized so as be easily integrated.
8. Special brake pads are excellent in friction performance, they can be replace easily.
9. The Main components of system are global purchasing to ensure the reliability.
10. the disc brakes which can meet the requirements of lands, Oceans, Deserts and cold area are available.
