| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Topland |
| Certification: | API |
| Model Number: | 250T |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Standard Package |
| Delivery Time: | 30 DAYS |
| Payment Terms: | T/T |
| Supply Ability: | / |
| Highlight: | BPM Top Drive System Components,Top Drive Components For Drilling Rigs |
||
|---|---|---|---|
|

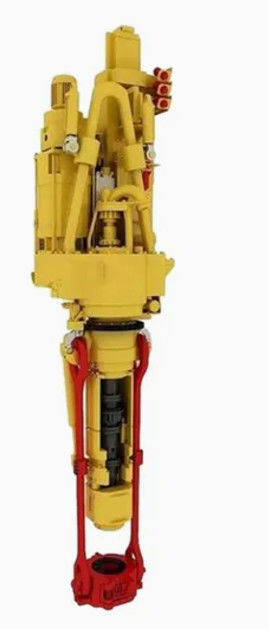

Technical specifications and parameters for Top Drive
|
|||
|
Specification |
250Ton |
350Ton |
500Ton |
|
Nominal drilling depth (5 1/2" drill pipe) |
4,000m(13,000ft) |
5,000m(16,000ft) |
7,000m(23,000ft) |
|
Rated load capacities |
2,250KN(250t)) |
3,150KN(350t) |
4,500KN(500t) |
|
Drilling torque (continuous, max.) |
32KN.m |
36KN.m |
54KN.m |
|
Rotary speed |
0 - 180rpm |
0 - 180rpm |
0 - 220rpm |
|
Rated power of AC induction motor |
315 KW x 1 |
350KW x 1 |
350KW x 2 |
|
Tilt angle of tilt arm ( max) |
Forth 30" Back 55" |
Forth 30" Back 55" |
Forth 30" Back 55" |
|
Maximum torque of break out |
50KN.m |
65KN.m |
80KN.m |
|
Working pressure of hydraulic system |
16MPa |
16MPa |
16MPa |
|
Input voltage of driving cabinet |
600VAC |
600VAC |
600VAC |
|
Range of variable frequency |
Rated 0 - 121Hz |
Rated 0 - 121Hz |
Rated 0 - 121Hz |
|
Shift gears range of motor |
0 - 2,400rpm |
0 - 2,400rpm |
0 - 2,400rpm |
|
Drill pipe range |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
|
Alarm Temperature of motor |
220degree |
220degree |
|
|
Alarm Temperature of gear oil |
75degree |
75degree |
|
|
Alarm Temperature of hydraulic oil |
75degree |
75degree |
|
|
Transmission ratio |
12.8:1 |
10.4:1 |
|
|
Shift gears range of motor |
0 - 2,400rpm |
0 - 2,400rpm |
0 - 2,400rpm |
|
Drill pipe range |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
2 7/8" - 5 1/2" |
|
Alarm Temperature of motor |
220degree |
220degree |
|
|
Alarm Temperature of gear oil |
75degree |
75degree |
|
|
Alarm Temperature of hydraulic oil |
75degree |
75degree |
|
|
Transmission ratio |
12.8:1 |
10.4:1 |
